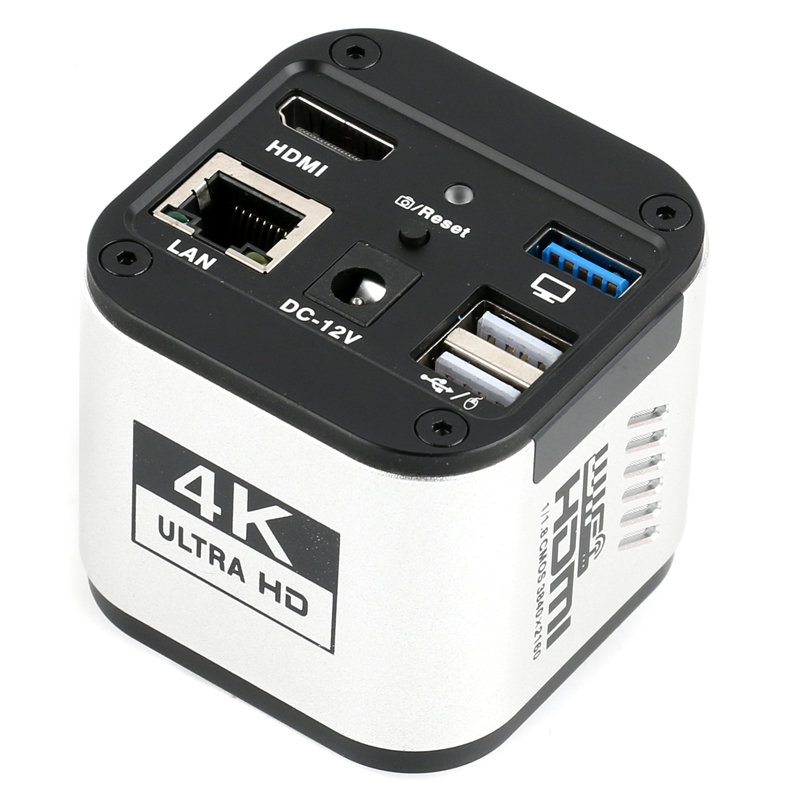

- 8.0MP 4K HDMI LAN WIFI6 USB2.0 USB3.0 工业相机
- 【简述】：Function:
Multifunction measurement function;
UHD HDMI 1080P/60FPS 4K/30FPS, Sony IMX334 High sensitivity CMOS sensor;
Adopt 1/1.8 inch image Sensor;
HDMI LAN USB3.0 4K 1080P image output;
Use USB flash drive store pictures and videos;
Use USB 3.0 LAN connector PC;
WIFI6 wireless video transmission;
2pcs USB interfaces (one USB mouse, one U disk,);
1-10X Electronics Digital Zoom;
One-key freeze/thaw function;
Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
Support manual/automatic white balance/one-key white B, R, G, adjustable;
Provide 8 line functions, line color, thickness, position adjustable;
Provide center crosshair display on/off;
Freeze screen,two split screen, four split screen;
Cross scale, concentric circles, used for basic measurement;
Measure distance between two points, rectangle, circle, angle, etc;
Supports multiple languages, Chinese, English, German, French, Japanese, Italian, Russian; - 【系列】：工业相机
Sensor Type:1/1.8" Sony IMX334 Color CMOS
Chip Structure:ARM dual-Core Architecture
Operating System:LINUX
Core Structure:Dual-Core ARM Cortex-A7
Main Frequency:1.5GHz
Video Interface:HDMI LAN WIFI6 USB2.0 USB3.0 Output
Video Output Mode:HDMI Monitor , PC or Phone
Material:Aluminum Alloy
Effective Pixel:UHD 3840*2160
Operation Mode:USB Mouse
Operation Interface:UI
HDMI Video Resolution Output:4K 3840*2160@30FPS
USB3.0 Video Resolution Output:4K 3840*2160@30FPS
LAN Video Resolution Output:4K 3840*2160@30FPS
WIFI Video Resolution Output:4K 3840*2160@30FPS
Electronics Digital Zoom:1-10x
Picture and Video Storage:Support U disk Storage
Video and Picture Playback:Support
Exposure Mode:Manual/automatic
White Balance:Automatic/manual
Video Format:AVI
Image Format:JPG
Pixel Size:2.0*2.0μm
U disk Support Format:FAT32
U disk Support Maximum Storage:128G
Measuring Function:Straight Line, Circle, Rectangle, Parallel line, etc
Mirroring,B&W Pictures,Image Freezing,Image Flip:Support
Crosshair:Suppor
Circle:AB Option, 16 groups, line width, color, radius, adjustable
Dial:AB Option, 16 groups, line width, color, radius, adjustable
Ray:AB Option, 16 groups, line width, color, angle, adjustable
Grid line:AB Option, 16 groups, line width, color, position, adjustable
R.B.G: 0-4095 Adjustable
Acutance:0-127 Adjustable/Automatic
Brightness:0-100% Adjustable
Contrast:0-100% Adjustable
Saturation:0-100% Adjustable
Noise Reduction:0-127 Adjustable/Automatic
Target Brightness:0-127 Adjustable
Manual Exposure:0-33.33ms
Gain:0-30.62x
Color Temperature:1500-15000K
Language:Chinese, English, German, French, Japanese, Italian, Russian
WIFI Setting:Support
WIFI Mode:Access port, Client port
Client Port:Works same network as computer
Access Port:Connects phone APP(default name:camera default password:12345678)
Time Setting:Support
Power:DC-12V/1A
Anti-Flicker:50/60Hz
Size:60*60*64.42mm
Weight:0.3kg
Packing including:
1 x Microscope Camera
1 x Power Supply Adapter (EU/US)
1 x HDMI Line
1 x USB Mouse
1 x USB3.0 Line
Chip Structure:ARM dual-Core Architecture
Operating System:LINUX
Core Structure:Dual-Core ARM Cortex-A7
Main Frequency:1.5GHz
Video Interface:HDMI LAN WIFI6 USB2.0 USB3.0 Output
Video Output Mode:HDMI Monitor , PC or Phone
Material:Aluminum Alloy
Effective Pixel:UHD 3840*2160
Operation Mode:USB Mouse
Operation Interface:UI
HDMI Video Resolution Output:4K 3840*2160@30FPS
USB3.0 Video Resolution Output:4K 3840*2160@30FPS
LAN Video Resolution Output:4K 3840*2160@30FPS
WIFI Video Resolution Output:4K 3840*2160@30FPS
Electronics Digital Zoom:1-10x
Picture and Video Storage:Support U disk Storage
Video and Picture Playback:Support
Exposure Mode:Manual/automatic
White Balance:Automatic/manual
Video Format:AVI
Image Format:JPG
Pixel Size:2.0*2.0μm
U disk Support Format:FAT32
U disk Support Maximum Storage:128G
Measuring Function:Straight Line, Circle, Rectangle, Parallel line, etc
Mirroring,B&W Pictures,Image Freezing,Image Flip:Support
Crosshair:Suppor
Circle:AB Option, 16 groups, line width, color, radius, adjustable
Dial:AB Option, 16 groups, line width, color, radius, adjustable
Ray:AB Option, 16 groups, line width, color, angle, adjustable
Grid line:AB Option, 16 groups, line width, color, position, adjustable
R.B.G: 0-4095 Adjustable
Acutance:0-127 Adjustable/Automatic
Brightness:0-100% Adjustable
Contrast:0-100% Adjustable
Saturation:0-100% Adjustable
Noise Reduction:0-127 Adjustable/Automatic
Target Brightness:0-127 Adjustable
Manual Exposure:0-33.33ms
Gain:0-30.62x
Color Temperature:1500-15000K
Language:Chinese, English, German, French, Japanese, Italian, Russian
WIFI Setting:Support
WIFI Mode:Access port, Client port
Client Port:Works same network as computer
Access Port:Connects phone APP(default name:camera default password:12345678)
Time Setting:Support
Power:DC-12V/1A
Anti-Flicker:50/60Hz
Size:60*60*64.42mm
Weight:0.3kg
Packing including:
1 x Microscope Camera
1 x Power Supply Adapter (EU/US)
1 x HDMI Line
1 x USB Mouse
1 x USB3.0 Line
